Contactless fingerprint access control

MorphoWave™ XP / Compact

Maintain or upgrade an installed MorphoWave entrance

The earlier MorphoWave XP and Compact readers capture four fingerprints with a wave of the hand. Use this page for model identification, documentation and replacement planning for your existing system.

IDEMIA’s MorphoWave XP and Compact are listed as end-of-life in the Biotime 2026 catalogue. For a new project, compare MorphoWave XP2 and MorphoWave SP.

MorphoWave XP

What the earlier XP supports

Read fingerprints without contact

Four fingerprints per gesture

The 3D sensor scans and verifies four fingers in less than a second. Confirm how your installed reader is configured.

Handle arrivals and shift changes

XP rated up to 60 users/minute

The XP colour touchscreen can guide people through access or time and attendance. Check actual throughput against the installed lane and workflow.

Match the credential to the configuration

Fingerprint, card and selected mobile options

Card formats, HID Mobile Access and printed QR options depend on the exact XP variant. Check the installed part number and required credentials.

For installed doors, turnstiles and pedestals

Doors and speed gates Check the mounting height, existing cable route and room for the user’s hand before changing the reader or the bracket.

Shift changes and attendance Record what the touchscreen and attendance software do today so the required prompts and events are included in a replacement specification.

Outdoor and pedestal installations Check rain and sunlight exposure, the generation of the bracket and the condition of the wiring. Review <a href=”https://www.biotime-biometrics.com/product/accessories-and-options/”>mounting and protection options</a> for the exact model.

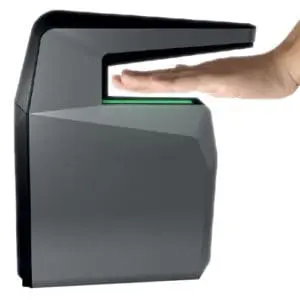

MorphoWave Compact - Biotime Biometrics

Technical specifications and replacement planning

Controller and power

The XP brochure lists OSDP, Wiegand and a door relay, with PoE+ or 12 to 24 V DC. Check controller protocol, power and connectors on the reader installed at the site.

XP user capacity and display

The XP has a 4.3-inch colour touchscreen and supports 40,000 user records in 1:N identification, expandable to 100,000 with a licence. Check the exact Compact version before applying XP specifications to it.

XP operating conditions and accessories

The XP brochure lists IP65 and −10 to 55 °C. IDEMIA recommends shielding the sensor from direct rain and sunlight. Check the site and the model-specific pedestal, visor or spacer before ordering.

Installed references and replacement options

XP references: MPH-AC004A / 293722301, MPH-AC004B / 293722319 and MPH-AC004C / 293771247. Refer to the original Compact brochure (PDF) for that model. Ask our Dubai team about moving to MorphoWave XP2, or compare MorphoWave SP when LED feedback meets the access requirements.

Get a project quote

Add the reader to your quote list with the quantity, installed part number and controller. Include photos of the mount and cable route so our Dubai team can assess the replacement.
