MorphoSmart™ 1300

USB fingerprint devices for highly secure desktop applications

About MorphoSmart™ 1300

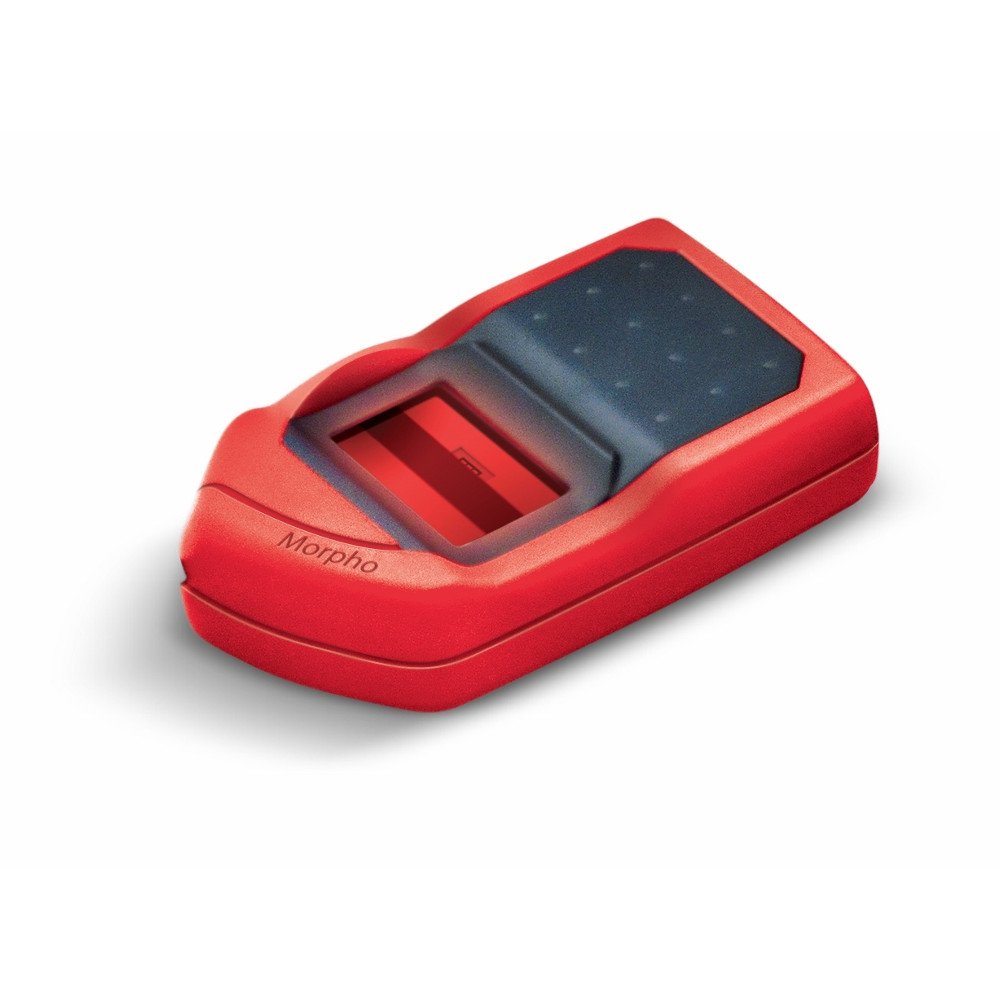

The MorphoSmart 1300 (MSO 1300) is a USB fingerprint device for highly secure desktop applications. This product is an all-in-one solution and is a powerful reader for enrolment, verification, and identification. This product is certified by the FBI. It can detect false finger (MSO 1300 E3) and reads smartcards (MSO 1350)

This reader uses optical technology. This technology is the best for fast acquisition and processing.

This product is available in 2 designs and 4 variants: MSO 1300 V3, MSO 1300 E3, MSO 1350 V3, MSO 1350 E3. MSO 1350 is embedded with a smartcard reader.

This reader can also be used for easy and secure payment as well as logical access control.

P/N : 293666201, 293664632

Download MorphoSmart™ 1300 brochure تحميل الكتيب

Description

All-in-one solution: superior performance for Enrollment,Verification and Identification
FIPS 201 and MINEX compliant Feature Extractor & Matcher onboard
FBI PIV IQS certification and fake finger detection available
Extensive security features, including encryption and digital signature

Download brochure تحميل الكتيب

Technical Features

Image Compression using WSQ algorithm from FBI/NIST
Biometric Feature Extraction to generate templates
- Feature Extractor is MINEX/FIPS 201 compliant
- Proprietary, ISO 19794-2 or ANSI 378 template formats available
- Templates can be stored in the internal database

Biometric Matching
- Matcher is MINEX/FIPS 201 compliant
- 1:1 authentication or 1:N identification
- High accuracy: the False Acceptance Rate (FAR) is configurable down to 10-8 (depending on the
  security requirements) and maintained regardless of number of users in database
- Fast matching (refer to the table entitled “2 designs, 4 variants”)
- Match-on-Card is available on MSO 1350 V3 / MSO 1350 E3
Capability of addressing juvenile fingers
An anti-latency feature detects fingerprint traces reactivated under certain lighting conditions
Enhanced image quality
- These precision designed, top of the range devices produce a fingerprint image that is
  certified PIV IQS by the FBI.
- The reference standard in terms of single fingerprint image quality (equivalent to ISO
  19794-4:2011 Annexure B) was defined to ensure in particular interoperability between
  multiple solutions.
Fake finger detection
- MSO 1300 E3 and MSO 1350 E3 detect a large panel of counterfeit fingerprints,
  including but not limited to those made with latex, Plasticine, Kapton, transparent film,
  rubber, Play-Doh, graphite or paper.
